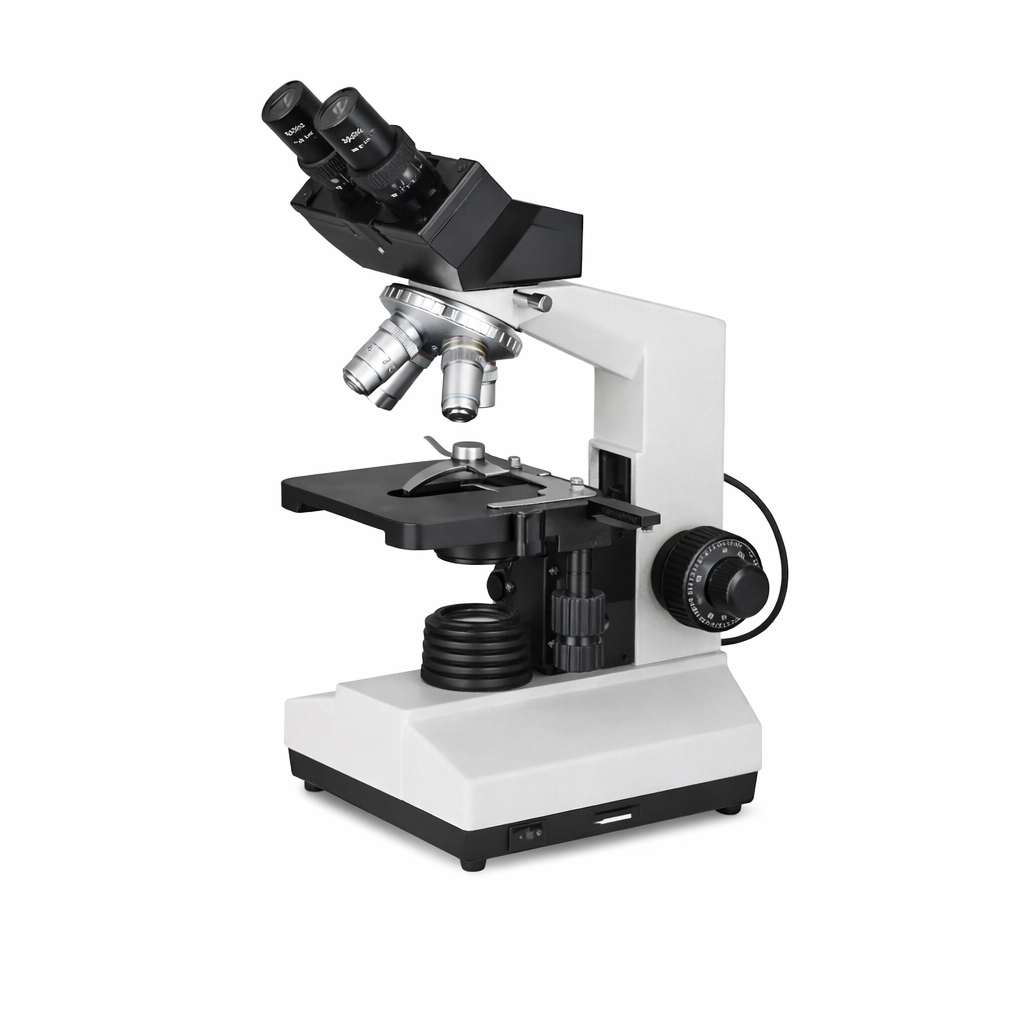

Binocular Microscope

Description

Benefits:

– Provides sharp, detailed imaging for accurate analysis and diagnostics

– Smooth mechanical stage enhances workflow efficiency

– High‑resolution optics ensure clarity across all magnification levels

– Ergonomic design reduces fatigue during extended use

– Ideal for clinical labs, universities, research centers, and training institutions

Key Features:

– High‑quality binocular microscope designed for laboratory, clinical, and educational applications

– Multiple achromatic objective lenses: 4X, 10X, 40X (spring), and 100X (spring, oil immersion)

– WF10X wide‑field eyepiece delivers bright, clear, high‑resolution imaging

– 45° inclined binocular head for ergonomic, comfortable viewing

– Double‑layer mechanical stage ensures smooth, precise slide movement

– Fine focus adjustment accuracy of 0.002 mm with 30 mm focusing range

– Flat‑concave reflector and built‑in illumination options (6V/20W halogen or LED)

– Abbe condenser NA 1.20 with iris diaphragm and filter holder for optimal light control

– Suitable for medical diagnostics, microbiology, pathology, and research laboratories

Technical Specifications:

– Eyepiece: WF10X

– Objectives: 4X, 10X, 40X (spring), 100X (spring, oil immersion)

– Viewing Head: Binocular, 45° inclined

– Stage: Double‑layer mechanical stage

– Focusing: Coarse & fine adjustment; 30 mm travel; 0.002 mm precision

– Condenser: Abbe NA 1.20 with iris diaphragm & filter

– Illumination: 220V/6V/20W or 110V/6V/20W lamp

– Reflector: Flat‑concave mirror for additional lighting options

Compliance & Safety:

– ISO Certified

– CE Approved

– Meets laboratory optical instrument standards

Additional Info:

– Deliveries Countrywide (at a fee)
